BMW 12-pin White Unsealed Plug, E53 M54 Engine Plug I, X6011 Chassis Harness Connector Kit

On the M54 E53, the X6011 connector is the white connector between the transmission harness and the chassis harness. The M54 E53 engine wire harnesses is typically used when doing M54 conversions in the E30 or E36 because the DME is located on the right hand side. When using the M54 E53 engine wire harness you will also need to use the matching M54 E53 transmission wire harness that also corresponds to the correct style coils you will be using.

This 12-pin plus is useful if you are building a new chassis harness or converting a E30 or E36 chassis harness to a M54 and do not want to modify the engine harness.

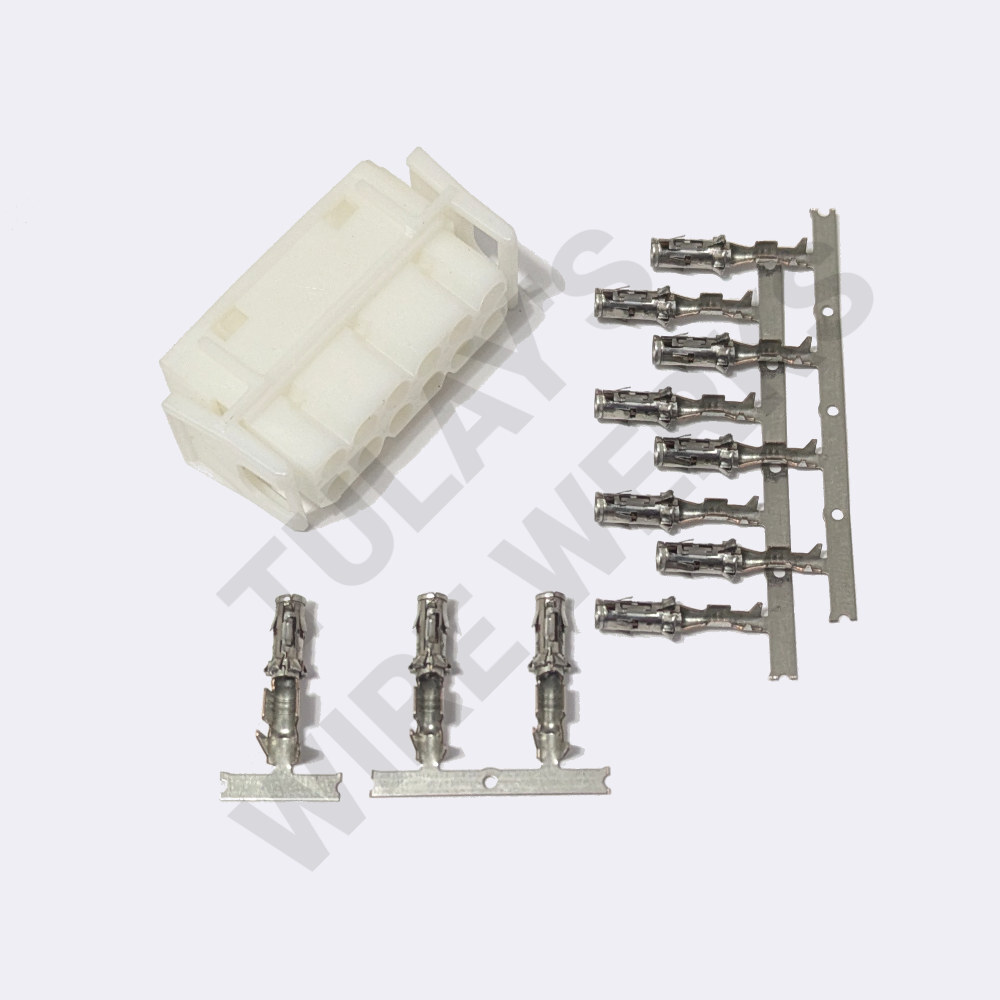

BMW 12-pin White Unsealed Plug, E53 M54 Engine Plug I, X6011 Chassis Harness Connector Kit Contents:

• BMW 12-pin White Unsealed Plug, E53 M54 Engine Plug I, X6011 Chassis Harness Connector
  • 8x – Pins for 0.50 – 1.00mm² wire
  • 2x – Pins for 1.50 – 2.50mm² wire
  • 1x – Pins for 3.00 – 4.00mm² wire

Application List:

• BMW E53 X6011 (Chassis Harness – M54 Engine)

Mates with:

• BMW 12-pin White Unsealed Receptacle, E39 M54 Engine Plug I, X6011 Chassis Harness Connector Kit

Notes:

– This kit includes more pins than you will need to provide spares and allow multiple wire sizes to be used.

– All items within this connector kit are genuine items sourced from authorized distributors.

– There are pins available for 0.35mm² (22 awg) wire but they are not readily available and/or expensive so we opted to not include any in this kit. Filler wire or folding the wire conductor to be within the crimp area range will work.
