BMW E90 / E92 Rear Sunshade Roller Blind Wire Harness

This is a newly created rear sunshade roller blind wire harness which can be added to another LHD E90 or E92 while retrofitting the rear sunshade roller blind.

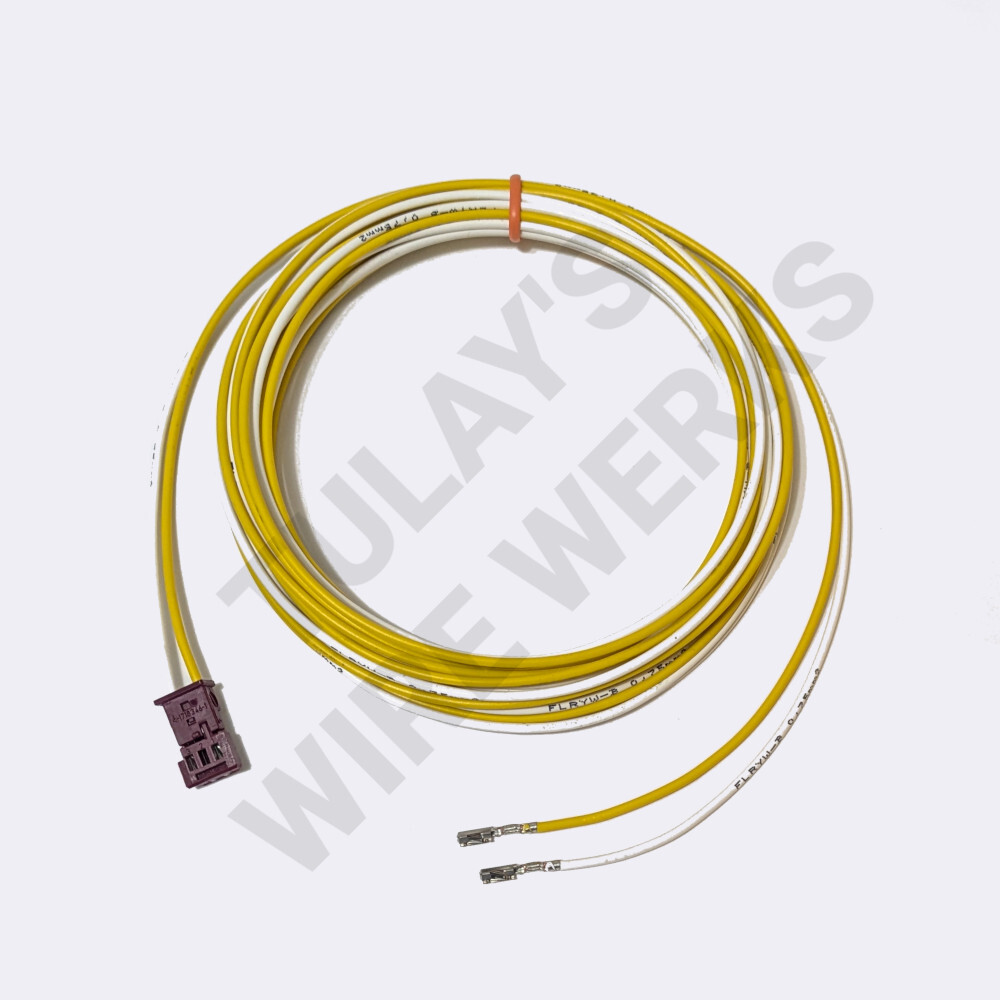

This wire harness includes the X1281, 3-pin, Violet connector of the M74 – Rear Sunshade Roller Blind Motor and has loose wires with the appropriate pins crimped onto them that will go to the X14270, 47-pin, Black connector of the A4010a – Junction Box Electronics (JBE).

Wiring Details:

• 0.75mm² Yellow – X1281-1 to X14270-3
• 0.75mm² White – X1281-3 to X14270-30

Notes:

– Although the rear sunshade roller blind varies from the coupe or sedan, this wire harness will work in either a coupe or sedan.

– We do not have any other rear sunshade roller blind parts available.

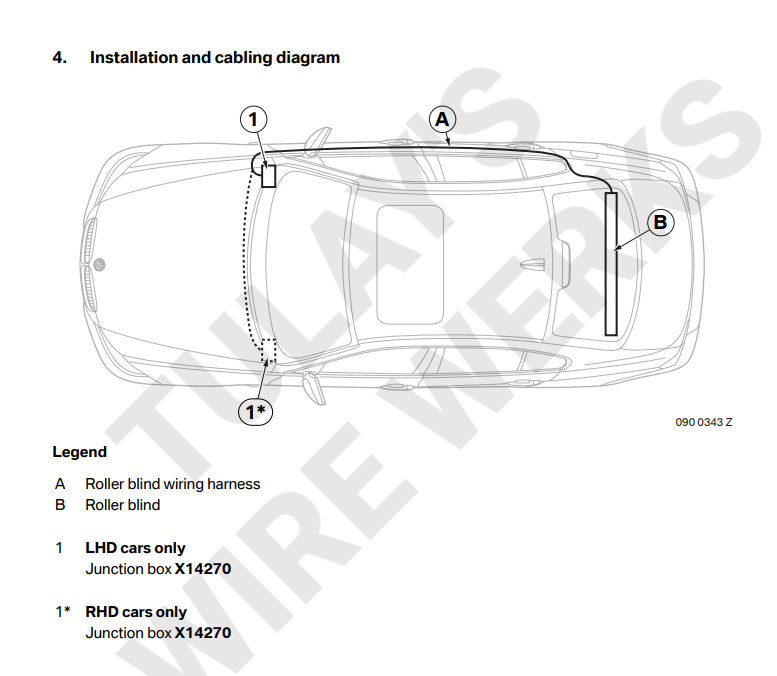

– RHD models require longer wires that go across the dash since the location of the JBE varies.

– This harness is not the same as the E46 version. They are very similar with the same connector, wire sizes and colors, but the loose pins are not the same and are not interchangeable.
