BMW E46 Headlight Vertical Aim Control Actuator Wire Harness – Left (LHD)

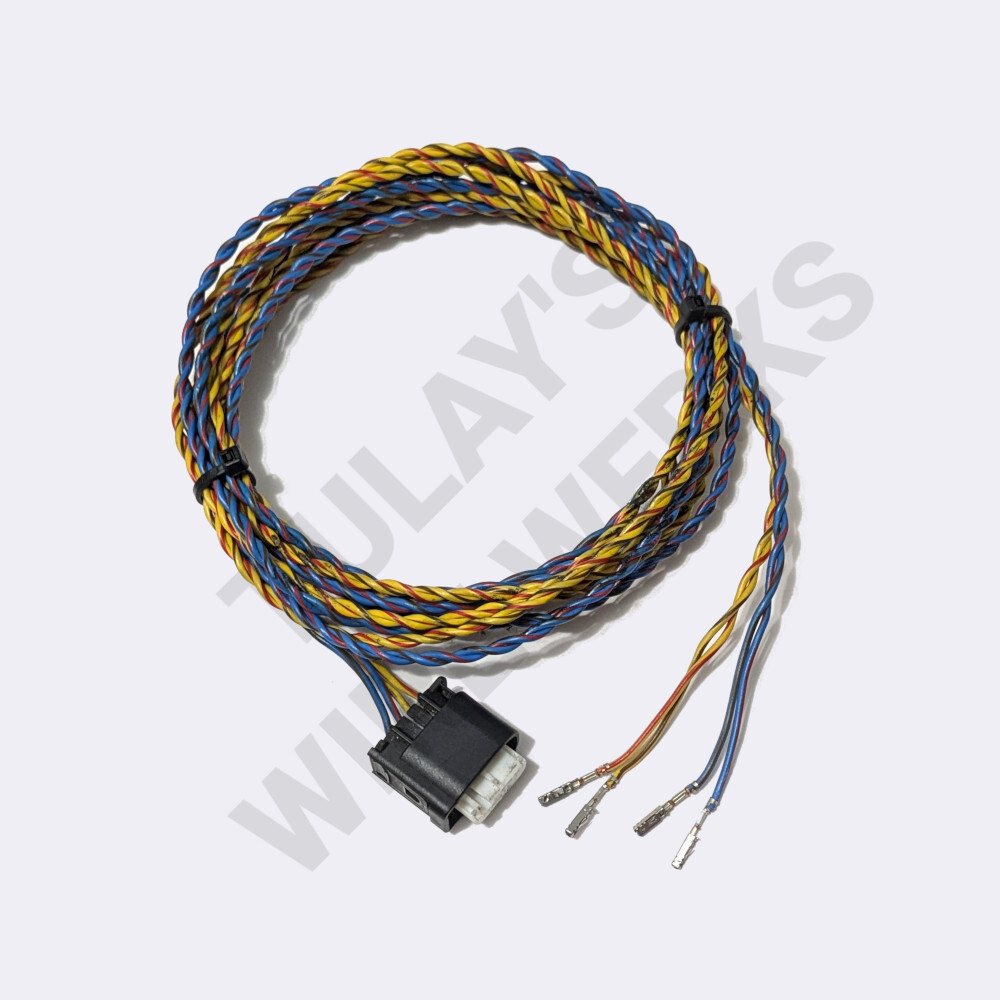

This is the complete, uncut, M80 – Headlight Vertical Aim Control Actuator – Left wire harness removed from a LHD E46 chassis harness that was being thinned for a racecar. This wiring can be added to another E46 to retrofit Xenon headlights.

This wire harness includes the X1034, 4-pin, Black/White connector of the M80 – Headlight Vertical Aim Control Actuator – Left and has loose wires that will go to the Brown Inner Connector of X12, 54-pin, Black connector of the A3 – Light Switch.

Wiring Details:

1. – 0.50 mm² Blue/Brown – Light Switch X12-39
2. – 0.50 mm² Yellow/Red – Light Switch X12-40
3. – 0.50 mm² Yellow/Brown – Light Switch X12-41
4. – 0.50 mm² Blue/Red – Light Switch X12-42

Notes:

 – This wire harness will work in either a Coupe or Sedan.
