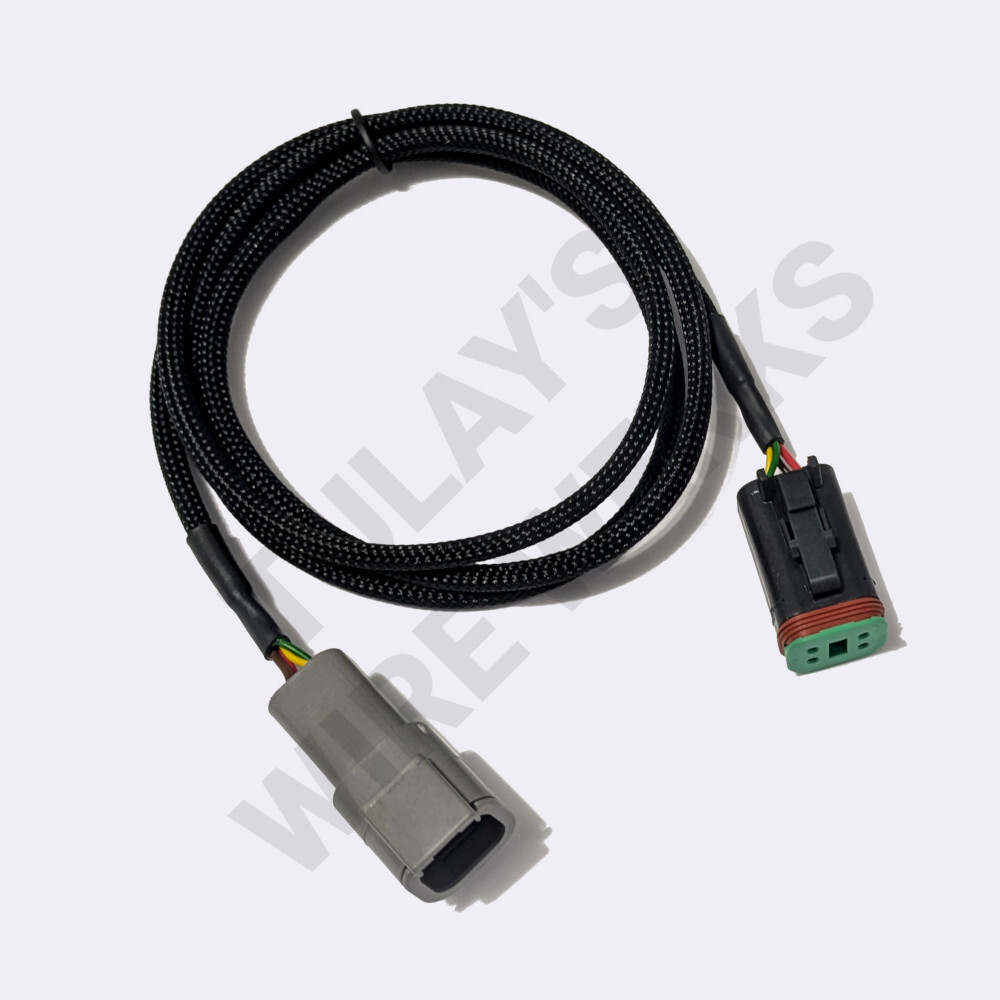

MicroPDM Keypad Cable, 4-pin, 4ft

Prewired cable for connecting a Blink Marine Keypad to a MicroPDM Rapid Enclosure or one of our custom prewired MicroPDM enclosures during chassis harness wire thinning service. This cable is built in the same fashion as the cable MicroPDM sells (we initially supplied their cables) with the same parts and materials, including a built in CAN termination resistor at the keypad connector. The two differences are the cable length is 4ft (custom length cables can be made per request), and using 0.35mm² Yellow and Green for CAN wires, and uses 0.50mm² Red and Brown for Power and Ground.

The 4-pin DTM Receptacle will plug into the MicroPDM Rapid Enclosure and the 4-pin DT Plug will plug into the Blink Marine Keypad.
